Preferences in foobar2000 is where you do most of player's configuring.
 Dialog Overview
Standard preferences dialog for foobar2000 v184.108.40.206 is shown on the picture. You can access it through the foobar2000 main menu item (File > Preferences) or by hitting Ctrl+P (by default).
The sidebar on the left selects which page of preferences is displayed on the area to the right. The preferences page displayed on the screenshot is General.
There are buttons at the bottom of the right area, which appear no matter what page you selected.
- Reset all will reset the whole configuration, including Media Library and playlists of foobar2000.
- Reset page will reset only the current page's settings; this button is active only when component or page supports it.
- Help will open the corresponding wiki page on Hydrogenaudio, in the default browser.
- OK applies any configuration changes and closes the dialog.
- Cancel closes the dialog discarding any changes made to the configuration.
- Apply applies any configuration changes but without closing the dialog.

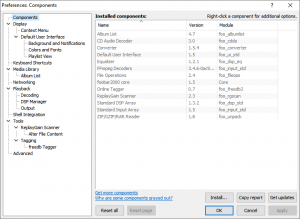

This is the Components page. It contains a list of all of the components installed, and allows you to find out about the components. By clicking on the table headers, you can sort the list by component name, DLL name or version. For many of the components (for example, Standard DSP array), if you double click an item in the list you get a popup with more detailed information.

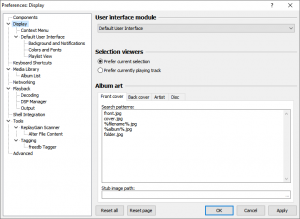

This is the Display page. It allows for selection of user interface and several other display-related options.
View the Display sub-entries at Foobar2000:Preferences:Display.

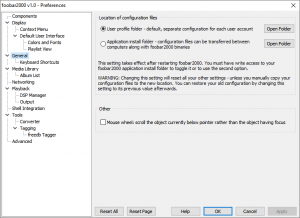

This is the General page. It contains general foobar2000 configuration information.
View the General sub-entries at Foobar2000:Preferences:General.

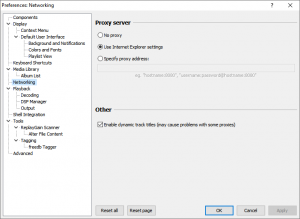

This is the Networking page. It allows configuration of several streaming-related options.
View more detailed information at Foobar2000:Preferences:Networking.

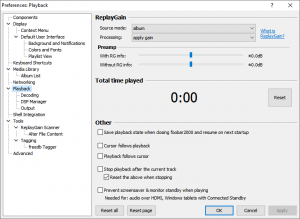

This is the Playback page. It allows configuration of several playback-related options.
View more detailed information at Foobar2000:Preferences:Playback.
